Unit Testing Surrogate Key Generator Stages

Classic Surrogate Key Generator stage

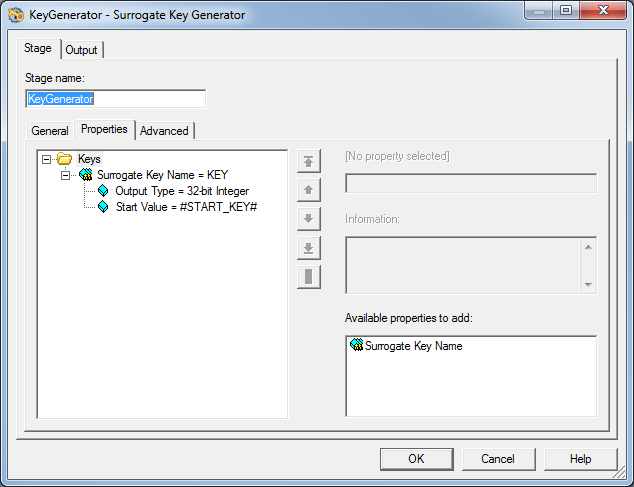

The classic Surrogate Key Generator stage will generate sequential keys from a given start value (typically set via a Job Parameter). To ensure that values generated by the Surrogate Key Generator stage remain the same between each execution of Unit Testing, add a fixed value for the start value Job Parameter in the when clause of the Unit Test Spec.

YAML

given:
...
when:
  job: KeyGeneratorExample
  parameters:
     START_KEY: 100
then:
...

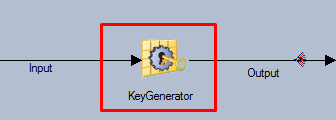

Database or Flat File-backed Surrogate Key Generator stage

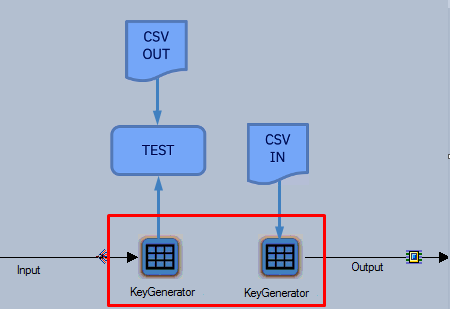

Surrogate Key Generators backed by a Database or a Flat File will produce output records which are not deterministic. The use of a Database-backed Surrogate Key Generator will also require a live connection to an external Database which is not ideal for Unit Testing. To Unit Test job designs containing this type of Surrogate Key Generator, the Surrogate Key Generator stage needs to be removed from the job and replaced with Unit Test Data. This is done by adding the input link in the then clause of the Unit Test Spec and the output link in the given clause of the Unit Test Spec.

The CSV input specified by the given clause contains the data that will become the flow of records from the Surrogate Key Generator stage. The data could simulate what would be produced by the real Surrogate Key Generator if it had processed the Unit Test input records, however it doesn’t have to. The easiest way to simulate the Surrogate Key Generator output records using MettleCI Workbench would be to copy the CSV specified in the then clause, add a new column to represent the generated key and set appropriate key values.

YAML

given:
  - stage: KeyGenerator
    link: Output
    path: KeyGenerator-Output.csv
when:
...
then:
  - stage: KeyGenerator
    link: Input
    path: KeyGenerator-Input.csv
