ISX Import Command

Purpose

Imports the contents of ISX files underneath a defined location into a DataStage project. Incremental imports can be performed by including the -project-cache parameter.

See Repeatable DataStage Project Deployments for more details on how the -project-cache parameter is used to implement incremental imports. For more information on using the -project-cache parameter see our detailed explanation.

Note that the isx import commands requires access to a correctly-functioning istool command and so is only executable on a Windows-based DataStage Client Tier.

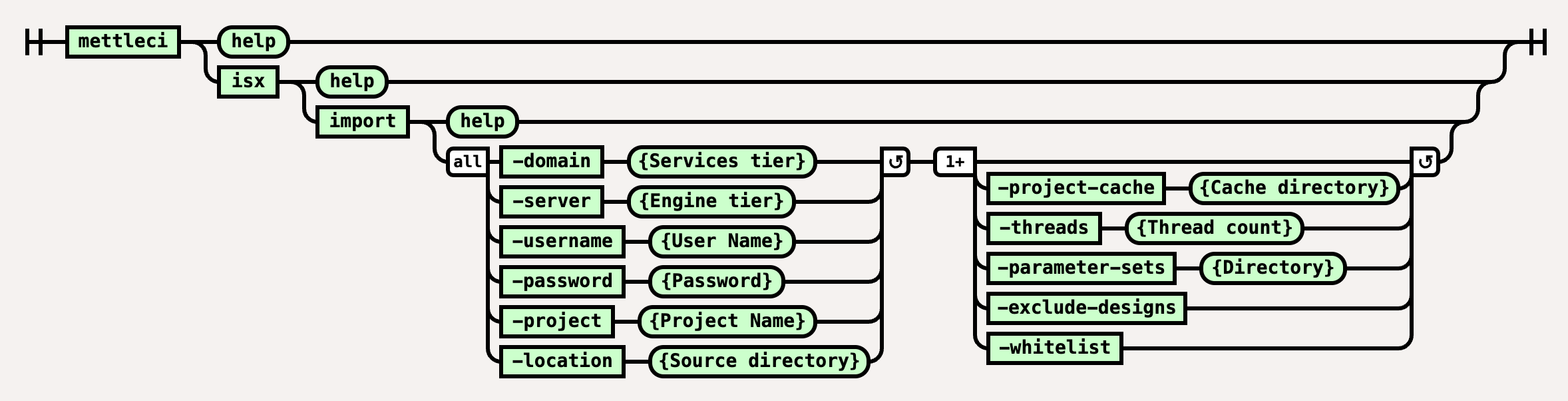

Syntax

Syntax : isx import [options]

Description

-domain
Services tier
Required
-server
Engine tier
Required
-username
User Name
Required
-password
Password
Required
-project
Project name
Required
-exclude-designs
Exclude designs during import
-location
Root directory of assets to import
Required
-parameter-sets
Root directory containing Parameter Set Value files to be imported with ISX files
-whitelist
White list of files to import from directory, not compatible with incremental import
-project-cache
Project cache directory, enables incremental import
-threads
Number of execution threads

Examples

Import all jobs from a given directory

BASH

$> mettleci isx import \
   -domain test2-svcs.datamigrators.io:59445 \
   -username myuser -password mypassword \
   -server test2-engn.datamigrators.io \
   -project myproject \
   -location /tmp/isx_location

Analyzing test2-engn.datamigrators.io/myproject
Optimising assets for import
Attempting to import with 1 working threads.
Importing DataStage assets...
 * Import 'test2-engn.datamigrators.io/myproject/Jobs/Load/LD_SALE.pjb' - COMPLETED
 * Import 'test2-engn.datamigrators.io/myproject/Jobs/Load/LD_STOCK_HOLDING.pjb' - COMPLETED
 * Import 'test2-engn.datamigrators.io/myproject/Jobs/Load/LD_STOCKITEM.pjb' - COMPLETED
 * Import 'test2-engn.datamigrators.io/myproject/Jobs/Load/LD_SUPPLIER.pjb' - COMPLETED
Import complete

Incrementally import project binaries only

This example incrementally imports project binaries, ignoring Job design information. Any Jobs in the project which do not exist in the source directory are deleted from the project. C:/shared/myproject/export is a directory containing ISX files (with binaries) to be imported and C:/shared/myproject/cache contains state files related to incremental operations performed against myproject:

BASH

$> mettleci.cmd isx import \
   -domain test2-svcs.datamigrators.io:59445 \
   -username myuser -password mypassword \
   -server test2-engn.datamigrators.io \
   -project myproject \
   -location c:/shared/myproject/export \
   -exclude-designs \
   -project-cache c:/shared/myproject/cache

Analyzing test2-engn.datamigrators.io/myproject
Attempting to identify changes with 4 working threads.
Inspecting DataStage assets for changes...
 * Check test2-engn.datamigrators.io/myproject/Jobs/Transform/TR_MOVEMENT.pjb - COMPLETED
 * Check test2-engn.datamigrators.io/myproject/Jobs/Load/LD_TRANSACTION_TYPE.pjb - COMPLETED
<SNIP>
 * Check test2-engn.datamigrators.io/myproject/Jobs/ParameterSets/pDMSqlServer_DW.pst - COMPLETED
 * Check test2-engn.datamigrators.io/myproject/Jobs/ParameterSets/pGlobal.pst - COMPLETED
Change identification complete
Deleting assets...
 * Delete 'test2-engn.datamigrators.io/myproject/Jobs/Transform/TR_ORDERS.pjb' - COMPLETED
 * Delete 'test2-engn.datamigrators.io/myproject/Jobs/Transform/TR_PURCHASE.pjb' - COMPLETED
Deletion complete
Optimising assets for import
Attempting to import with 1 working threads.
Importing DataStage assets...
 * Import 'test2-engn.datamigrators.io/myproject/Jobs/Transform/TR_PURCHASE.pjb' - COMPLETED
 * Import 'test2-engn.datamigrators.io/myproject/Jobs/Transform/TR_ORDERS.pjb' - COMPLETED
Import complete
Attempting to identify last change with 4 working threads.
Inspecting DataStage assets for last change...
 * Check test2-engn.datamigrators.io/myproject/Jobs/ParameterSets/pDMSqlServer_OLTP.pst - COMPLETED
 * Check test2-engn.datamigrators.io/myproject/Jobs/ParameterSets/pDMSqlServer_DW.pst - COMPLETED
<SNIP>
 * Check test2-engn.datamigrators.io/myproject/Jobs/Load/LD_EMPLOYEE.pjb - COMPLETED
 * Check test2-engn.datamigrators.io/myproject/Jobs/Load/LD_STOCKITEM.pjb - COMPLETED
Last change identification complete
