DataStage Connector Migration Command

Purpose

This command performs a connector migration using IBM’s Connector Migration Tool ('CCMT'). It specifically provides the following capabilities….

Invoke the DataStage Connector Migration Tool using optional supplied parameters.
Logs all behaviour to a specified log file.
Runs using parallelism (using the -threads option) for optimum performance
Once complete, it runs a DataStage compilation command (mettleci datastage compile, described here) and produces a JUnit-compatible test result.

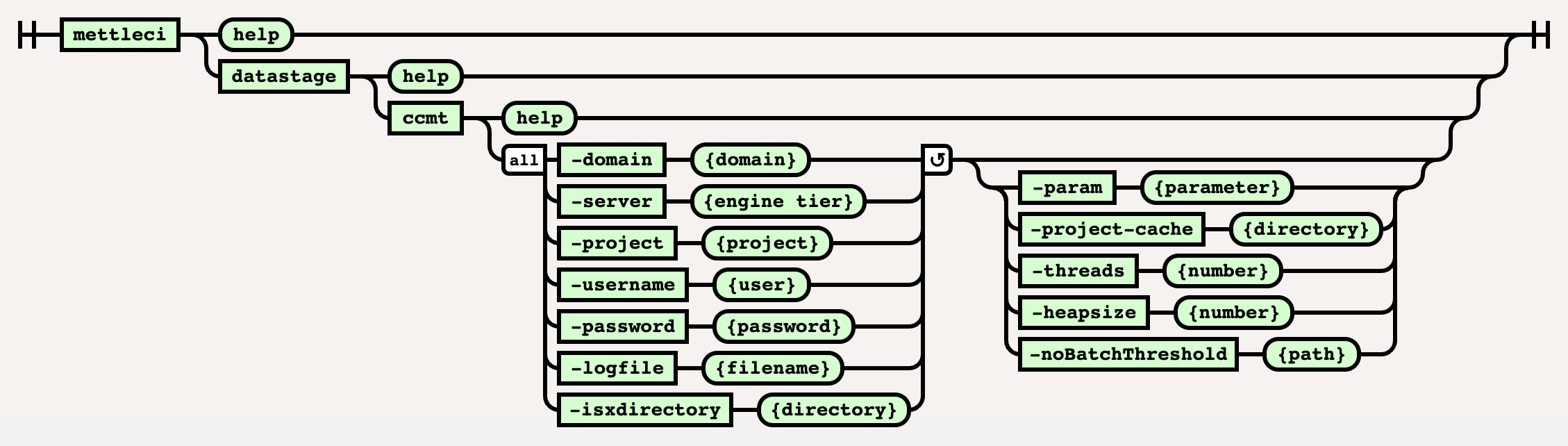

Syntax

Syntax : datastage ccmt [options]

Description

-domain
Services Tier:Port
Required
-server
Engine Tier
Required
-project
Project Name
Required
-username
User Name
Required
-password
Password
Required
-param
Optional parmeters (use 1 parameter per CCMigration option)
-project-cache
Project cache directory
-logfile
Log File
Required
-isxdirectory
Root Isx Directory
Required
-threads
Maximum Threads
-heapsize
Maximum Heap Size
-noBatchThreshold
Split into batches when job count exceed

Example

BASH

$> mettleci datastage ccmt ^
   -domain my_service_tier.datamigrators.io:59445 ^
   -username isadmin ^
   -password my_password ^
   -server my_engine_tier.datamigrators.io ^
   -project my_project ^
   -param "-J ConnectorTest" ^
   -logfile \log\ccmt\log\cc_migrate.log.txt ^
   -isxdirectory /path/to/isx ^
   -threads 4 ^
   -param " -M " ^
   -param " -T " ^
   -param " -V OracleConnector=12,OracleConnectorPX=12 "
MettleCI Command Line (build 128)
(C) 2018-2022 Data Migrators Pty Ltd
Generating dump report on... my_project
Project my_project dump report generated (22.871 seconds)
Executing CCMT on... my_project
Project my_project CCMigrated successfully (32.634 seconds)
The following jobs Connector Migrated:
   CCMT_Test migrated successfully
Executing CCMT on... my_project
Project ccmt_test CCMigrated successfully (15.220 seconds)
Variant for stage type OracleConnectorPX was changed in 2 stage instances
Variant for stage type OracleConnector was changed in 0 stage instances
Variant for stage type updated complete
Compiling DataStage jobs...
 * Compile 'my_engine_tier.datamigrators.io/my_project/Jobs/CCMT_Test.pjb' - COMPLETED
Compilation complete
Creating JUnit test suite
JUnit test suite created successfully
