Compliance Test Command
This page is for running MettleCI COMPLIANCE RULES. If you're looking for the Asset Queries typically used in a MettleCI Report Card then please see the Compliance Query Command.
The ‘tags’ feature documented on this page is available in MettleCI releases greater than v1.1
Purpose
The command line implementation of the Compliance Test functionality enables the production of a Compliance Results report of the specified assets against the specified set of MettleCI Compliance Rules.
For more information on using the -project-cache parameter see our detailed explanation.

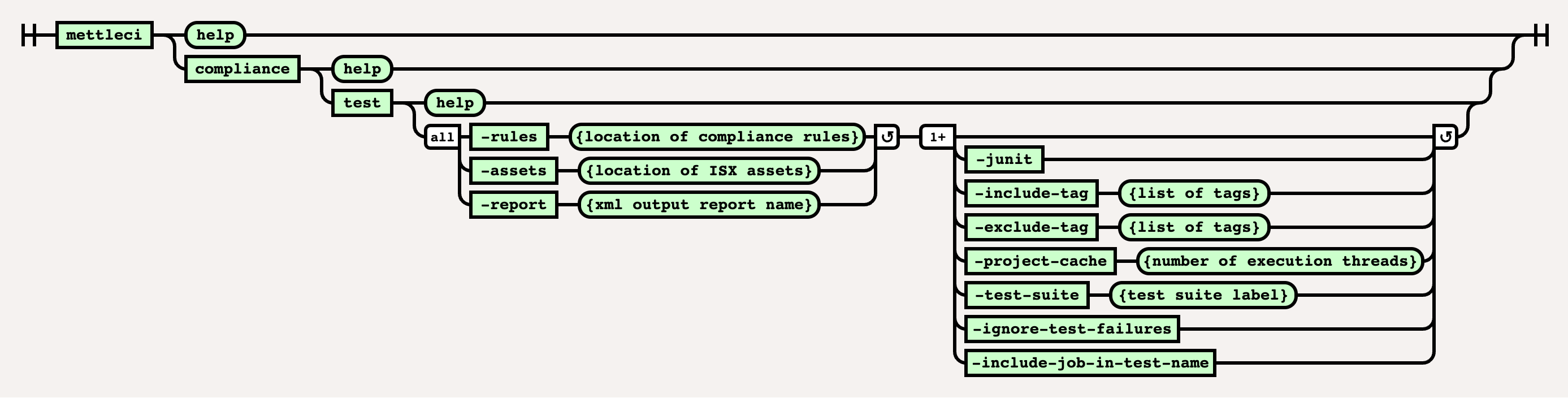

Syntax
Syntax : compliance test [options]
Description
-rules
location of all the rule files, searched recursively when ‘-include’ or ‘-exclude’ switches are used
Required
-include-tags
Tags of compliance rules to include (case insensitive), use ‘*’ to include all tags
-exclude-tags
Tags of compliance rules to exclude (case insensitive)
-assets
location of all ISX assets to test
Required
-report
report name (.csv or .xml)
Required
-junit
XML report is in JUnit format
-project-cache
Project cache directory, enables incremental testing
-test-suite
Name of test suite being run, only required if running this command multiple times for the same project
-ignore-test-failures
Returns zero when testing completes regardless of failures
-include-job-in-test-name
Test case names will include the job name in the jUnit report
Example
This example demonstrates how to export a set of ISX files and run Compliance against them. Note that asset paths specification in the export command uses the same wildcard rules as the istool command.
# ==============================
# Export the required ISX assets
# ==============================
C:\MettleCI\cli\> mettleci isx export ^
-domain myteam-svcs.corp.com:59445 ^
-username myuser -password mypassword ^
-server myteam-engn.corp.com ^
-project myproject ^
-location C:\shared\myproject\export ^
-include-binaries ^
-project-cache C:\shared\myproject\cache
Analyzing test2-engn.datamigrators.io/myproject
Attempting to identify changes with 4 working threads.
Inspecting DataStage assets for changes...
<SNIP>
Change identification complete
Inspecting ParameterSet definition changes...
ParameterSet definition change identification complete
Deleting assets...
<SNIP>
Deletion complete
Exporting DataStage assets...
<SNIP>
Export complete
Attempting to identify last change with 4 working threads.
Inspecting DataStage assets for last change...
<SNIP>
Last change identification complete
# ==================================================================
# Run the specified compliance rules against the exported ISX assets
# ==================================================================
$> mettleci compliance test
-rules compliance_rules
-assets datastage
-report compliance_report_warn.xml
-junit
-project-cache ./project-cache
-test-suite warnings
-ignore-test-failures
-include-job-in-test-name
MettleCI Command Line (build 122)
(C) 2018-2020 Data Migrators Pty Ltd
rules configuration discovered
new rule discovered - 'Adjacent Transformers' (PARALLEL_JOB)
new rule discovered - 'CCMigrateTool Stages' (PARALLEL_JOB)
new rule discovered - 'CCMigrateTool Stages' (SERVER_JOB)
new rule discovered - 'Database Row Limit' (PARALLEL_JOB)
new rule discovered - 'Database Row Limit' (SERVER_JOB)
new rule discovered - 'Debug Row Limit' (PARALLEL_JOB)
<SNIP>
new rule discovered - 'One Dataflow' (SERVER_JOB)
new rule discovered - 'Range Lookup' (PARALLEL_JOB)
new rule discovered - 'Too Many Stages' (PARALLEL_JOB)
new rule discovered - 'Too Many Stages' (SERVER_JOB)
new rule discovered - 'Unique Sort' (PARALLEL_JOB)
[1/3] TestJob_0921 (PARALLEL_JOB)
[2/3] TestJob_0930 (PARALLEL_JOB)
[3/3] TestJob (PARALLEL_JOB)
# Done!
$>
This example produces an output file compliance.csv in the current directory which looks like this (formatted here for clarity):
asset | assetType | test | duration | result | message |
|---|---|---|---|---|---|
TestJob_0921 | PARALLEL_JOB | Adjacent Transformers | 0.046 | Success | |
---< rows redacted for brevity >--- | |||||
TestJob_0921 | PARALLEL_JOB | Debug Row Limit | 0.016 | Success | |
TestJob_0921 | PARALLEL_JOB | Default Naming | 0.015 | Failure | PxRowGenerator 'Row_Generator_0' uses DataStage's default naming. Please provide a meaningful name meeting naming standards. |
TestJob_0921 | PARALLEL_JOB | Hardcoded File Paths | 0.016 | Success | |
---< rows redacted for brevity >--- | |||||
TestJob_0930 | PARALLEL_JOB | Debug Row Limit | 0 | Success | |
TestJob_0930 | PARALLEL_JOB | Default Naming | 0 | Failure | PxRowGenerator 'Row_Generator_0' uses DataStage's default naming. Please provide a meaningful name meeting naming standards. |
TestJob_0930 | PARALLEL_JOB | Hardcoded File Paths | 0.016 | Success | |
---< rows redacted for brevity >--- | |||||
TestJob | PARALLEL_JOB | Debug Row Limit | 0 | Success | |
TestJob | PARALLEL_JOB | Default Naming | 0 | Failure | PxRowGenerator 'Row_Generator_0' uses DataStage's default naming. Please provide a meaningful name meeting naming standards. |
TestJob | PARALLEL_JOB | Hardcoded File Paths | 0 | Success | |
---< rows redacted for brevity >--- | |||||
TestJob | PARALLEL_JOB | Unique Sort | 0 | Success | |
See Also
For a discussion on the use of the
include-tagsandexclude-tagsoptions see Compliance Rule Tags.
