Bamboo Run DataStage Unit Tests Task

You can use the Run DataStage Unit Tests task to execute Unit Test specification created by the MettleCI Workbench.

Using the Run DataStage Unit Tests Task user interface

Steps

Navigate to the Tasks configuration tab for the job (this will be the default job if creating a new plan).
Click the name of an existing Execute DataStage Job task or click Add Task and then search 'DataStage' to easily locate the Run DataStage Unit Tests task type, in order to create a new task.
Complete the following settings:

Task Description	A description of the task, which is displayed in Bamboo.
Disable this task	Check, or clear, to selectively run this task.
Executable	From the pulldown list, choose a DataStage Capability.
Domain	Enter the Domain of the DataStage instance (Host Name of the Services Tier). e.g. `${bamboo.Domain}`
Server	Enter the Server of the DataStage instance (Host Name of the Engine Tier). e.g. `${bamboo.ServerName}`
Username	Enter the DataStage Username. e.g. `${bamboo.DataStageUsername}`
Password	Enter the DataStage Password
Project name	DataStage Project containing assets to be executed
Specification Directory	Enter the location of Unit Test spec directory used by the Unit Tests harness, typically `/opt/dm/mci/specs/<Project Name>`. See notes below when the Bamboo agent does not have direct access to directories on the DataStage engine.
Reports Directory	Enter the location of Unit Test reports directory which the Unit Tests harness writes to, typically `/opt/dm/mci/reports/<Project Name>`. See notes below when the Bamboo agent does not have direct access to directories on the DataStage engine.
Only test changed jobs?	Skip all tests related to jobs which have not changed since the last execution of this task.
Fail build when a Unit Test fails?	Fail the build if any Unit Tests fail.
Maximum Concurrent Jobs	Specify the maximum number of concurrent jobs executed during Unit Testing

Click Save

Running Unit Testing without direct access to DataStage engine storage

When the Run DataStage Unit Tests task does not have direct access to the test specifications and reports directories on the DataStage engine, the SCP Upload and SCP Download Bamboo tasks provided with MettleCI can be used to work around this limitation. Below is a high-level overview of running Unit Test Specifications from a Git repository without direct access to the Specifications and Reports directories on the DataStage Engine:

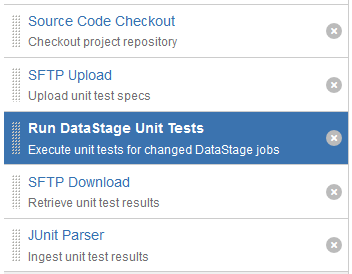

Task Execution Description

Source Code Checkout is used to checkout the Unit Test specifications that have been created by Workbench and checked into Git. These typically reside in the unittest directory in the root of your Git repository.
SFTP Upload recursively transfers the content of the unittest directory to the remote /opt/dm/mci/specs/<project name> directory on the DataStage Engine.
Run DataStage Unit Tests with the Specifications directory option referring to the unittest directory created by step 1 and the Reports directory set to test-reports. The Fail build when a Unit Test fails? option but be unchecked.
SFTP Download recursively transfers the content of the remote /opt/dm/mci/reports/<project name> directory on the DataStage engine to the local test-reports directory.
JUnit Parser is configured to recursively parse all test results produced by Steps 3 and 4 using the pattern test-reports/**/*.xml

Using the Run DataStage Unit Tests Task in a YAML pipeline

YAML

- mci-datastage-unit-tests:
    server-name: ${bamboo.ServerName}
    incremental: 'true'
    project-name: ${bamboo.ProjectName}
    domain-name: ${bamboo.DomainName}
    specs-location: unittest
    max-threads: '8'
    reports-location: test-reports
    dsinstall: DataStage v11.7
    shared-credentials: *datastage_credentials
    description: Execute unit tests for changed DataStage jobs
